Can I add a Flange Kit to an existing PowerFlex 753/755 NEMA/UL Type 0?

This article answers the question whether or not a Flange Kit can be added the an existing PowerFlex 753/755 NEMA/UL Type 0.

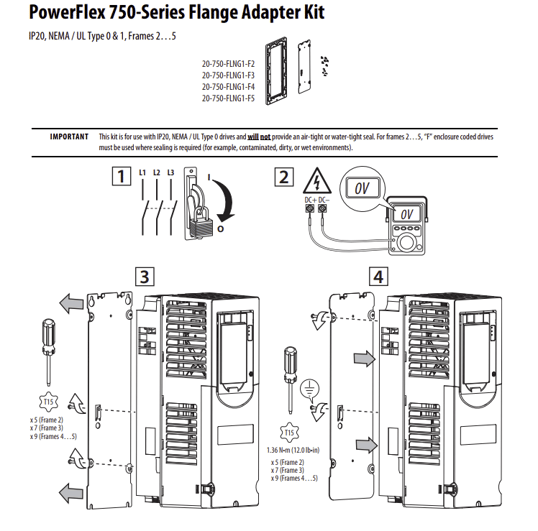

The following Flange Kits can be added to a PowerFlex 753/755 NEMA/UL Type 0 but it will not create a NEMA/UL 4X/12 Rating.

  • 20-750-FLNG1-F2
  • 20-750-FLNG1-F3
  • 20-750-FLNG1-F4
  • 20-750-FLNG1-F5

NOTE: The PowerFlex 753/755 Frame 2 through 5 Flange Mount Drives rated for NEMA/UL 4X/12 must be ordered with the "F" in the enclosure code of the catalog string.
