How do I setup a PowerFlex 755TS for Integrated Motion Mode?

This article provides information on how to setup the PowerFlex 755TS in Integrated Motion Mode so that it can respond to Motion Commands from Studio 5000

Answer:

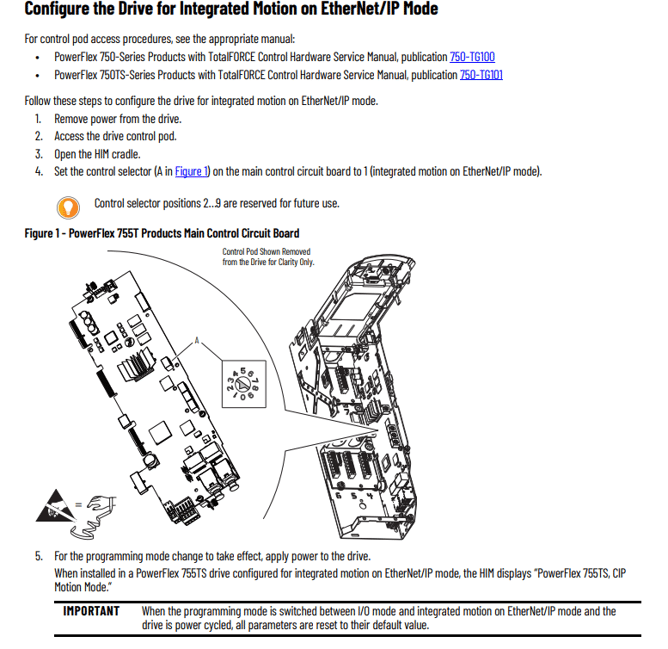

Hardware Setup to configure the PF755TS for Integrated Motion Mode

PF755TS Integrated Motion Manual Link
