What are the "Enable" and "Safety" jumpers on a PowerFlex 755TS

This article shows the location and position settings of the "Enable" and "Safety" jumpers on a PowerFlex 755TS

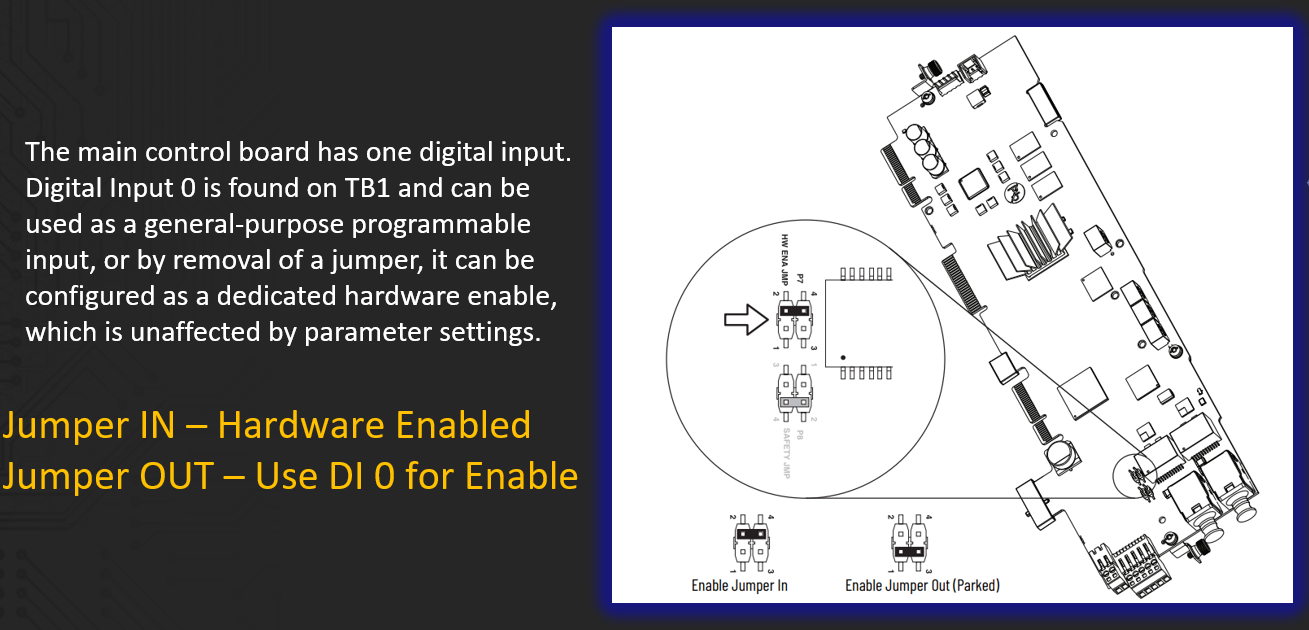

Enable Jumper

NOTE: When the jumper is in the OUT (Parked) position, you MUST use the DI 0 for the ENABLE

NOTE: DI 0 is located at the bottom of the control board towards the back

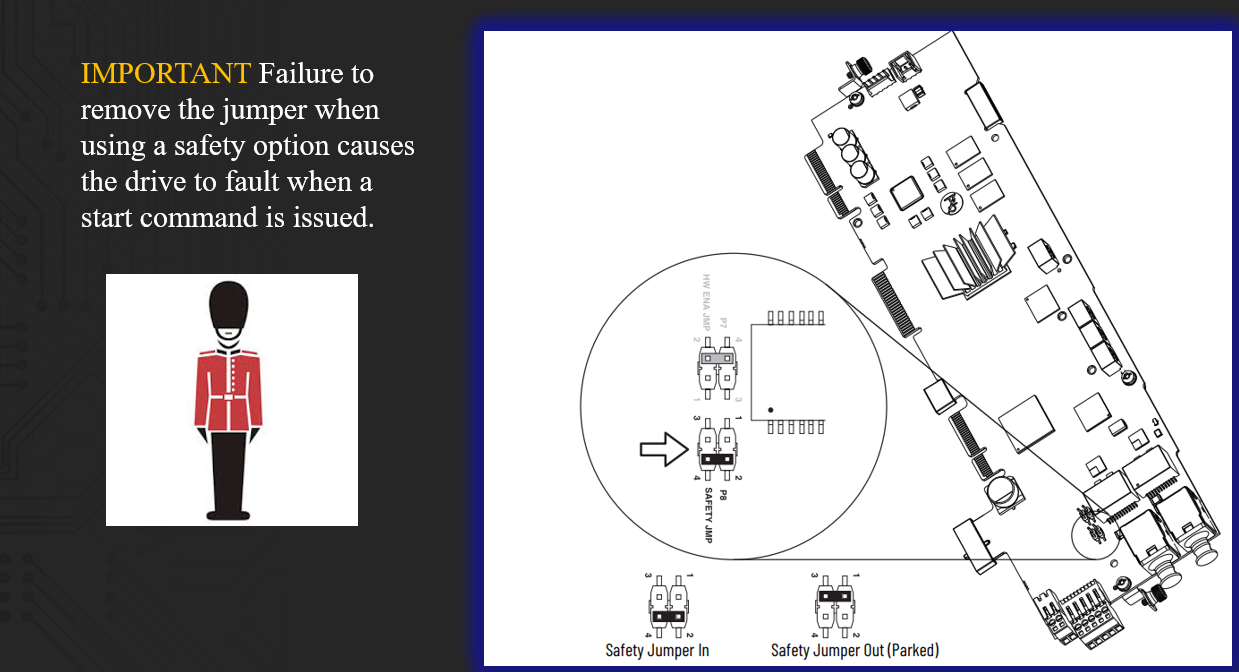

Safety Jumper

NOTE: The jumper must be in the OUT (Parked) position when a safety board is installed in a port.

NOTE: The jumper must be in the IN position when a safety board IS NOT installed in a port
