What Braking Resistor do I choose for a PowerFlex 523/PowerFlex 525 VFD?

This article provides tables to help select which braking resistor goes with which PowerFlex 523/PowerFlex 525 VFD.

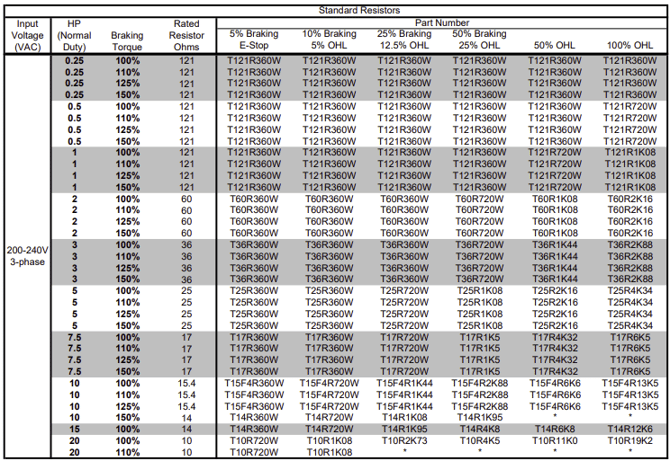

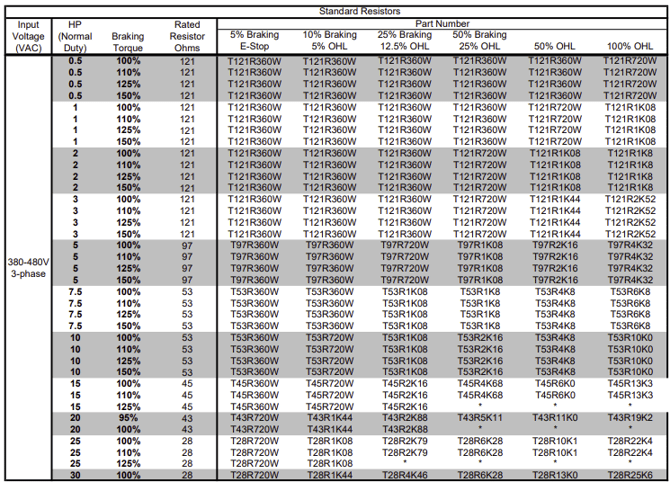

Use the charts below (separated by Input Voltage / HP and Braking Torque)

Manufacturer: Post Glover

NOTE: Click the link below to open up the file below

Post Glover Braking Resistors for Rockwell PowerFlex VFDs

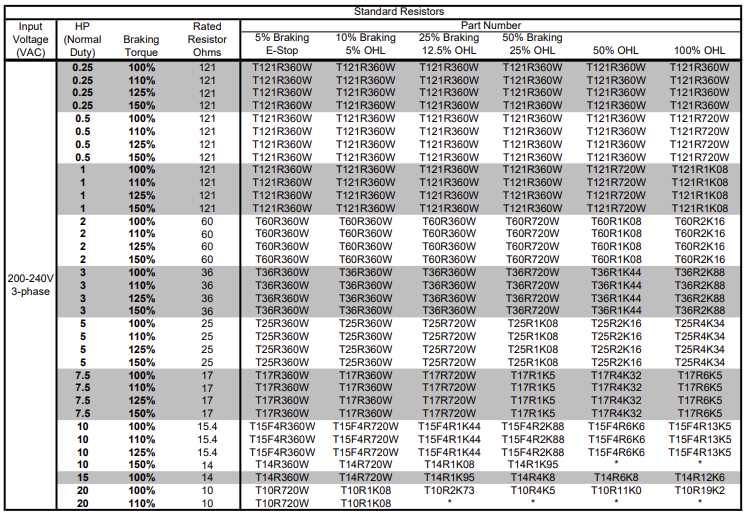

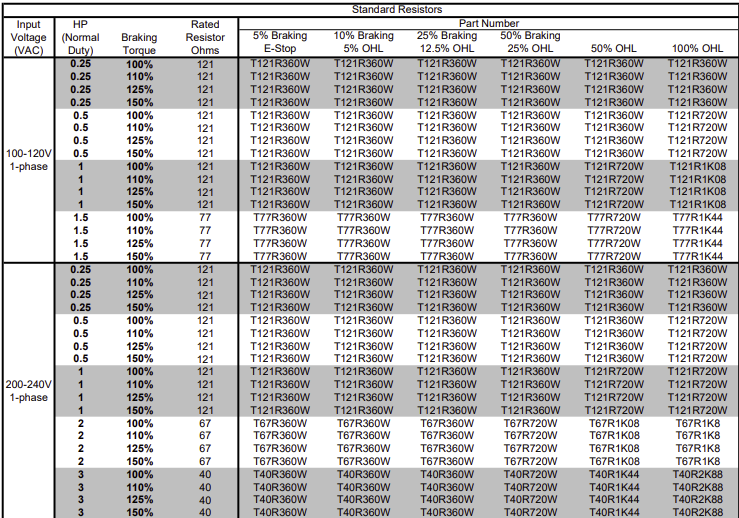

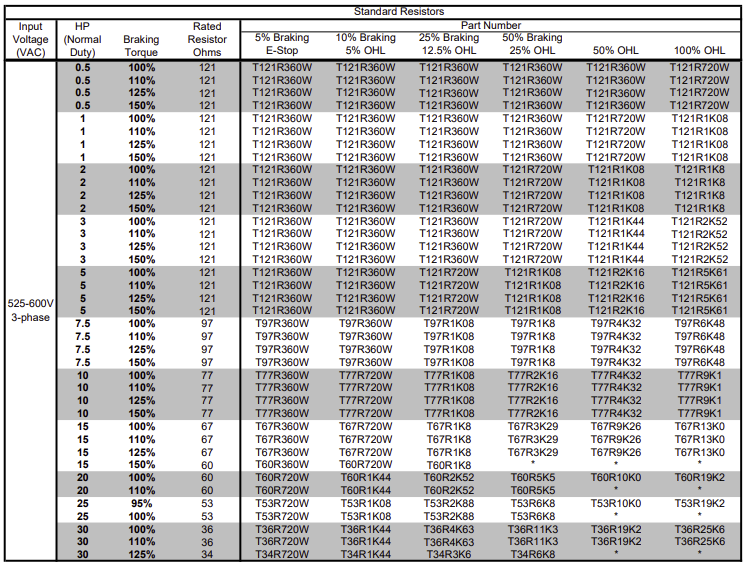

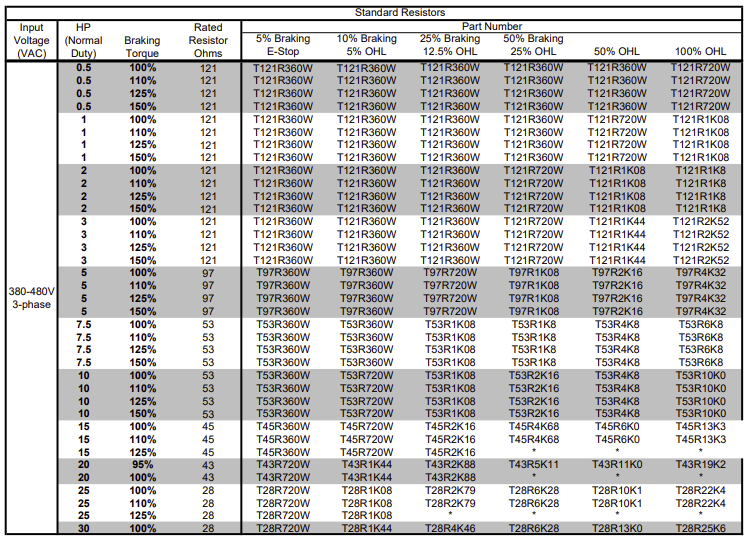

PowerFlex 520 Series (Standard Resistors)

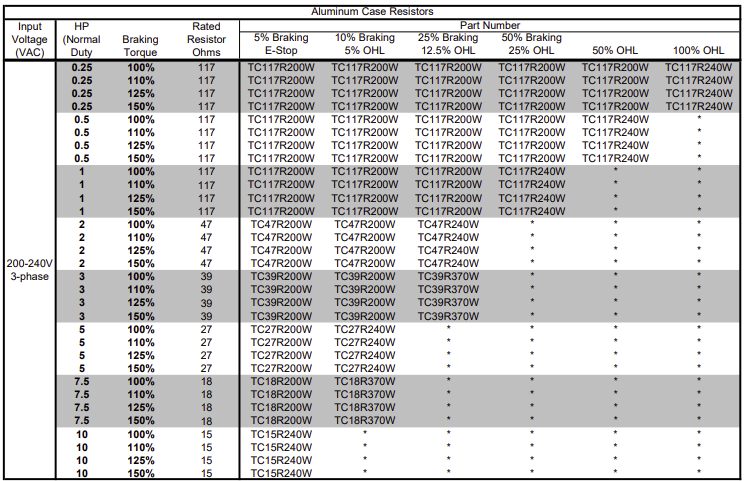

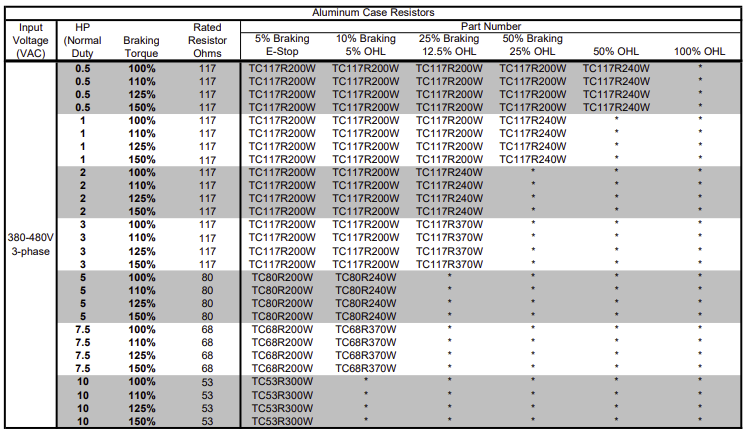

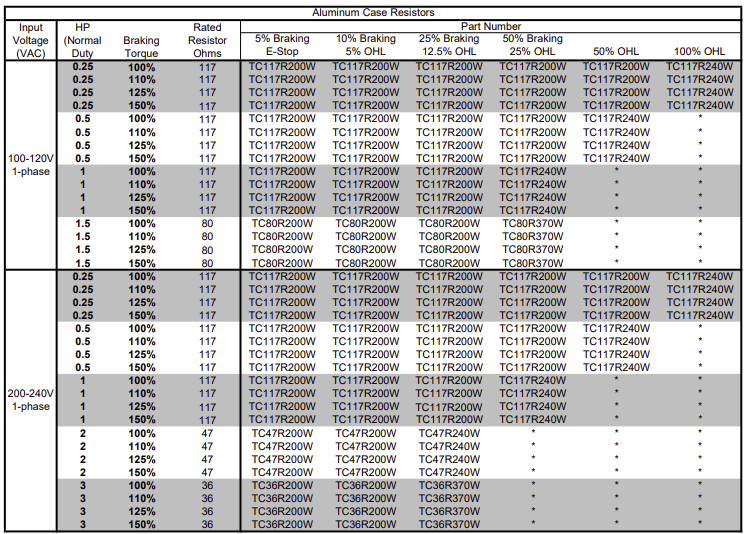

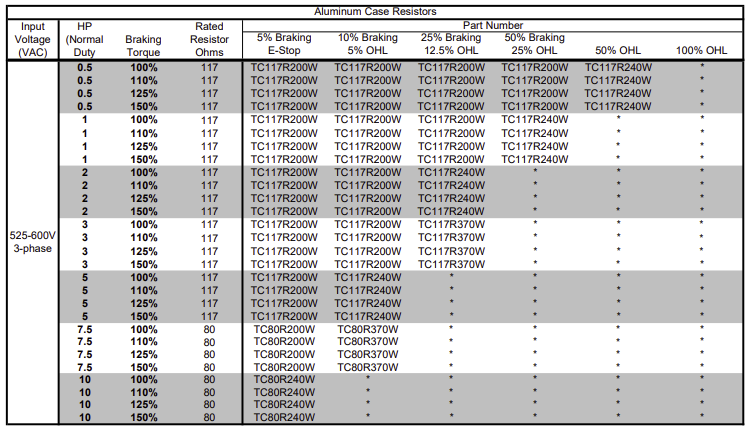

PowerFlex 520 Series (Aluminum Case Resistors)
