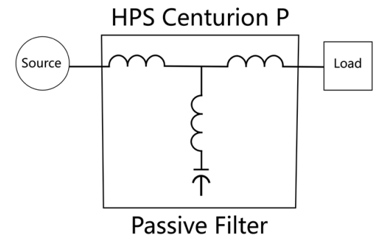

A passive harmonic filter is an electrical device consisting of passive components—inductors, capacitors, and resistors—designed to reduce harmonic distortion in power systems. It acts as a low-impedance path to trap specific harmonic frequencies, typically mitigating distortion caused by non-linear loads like variable frequency drives (VFDs) and rectifiers.

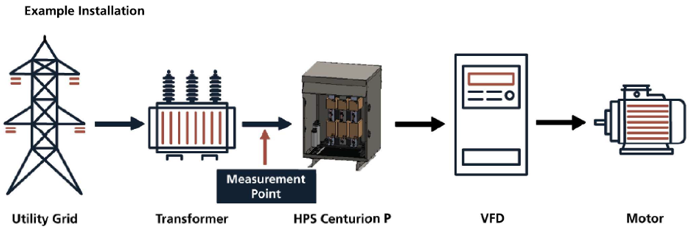

It is connect just before the input power of the Variable Frequency Drive

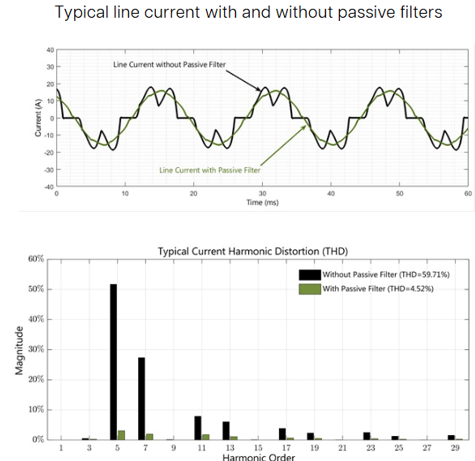

When sized correctly (HP/Voltage & Current of the VFD), It will reduce the THD (Total Harmonic Distortion) and the VFD is creating to meet IEEE-519 Standard Levels
NOTE: This solution is designed for 1 per VFD.
